Description

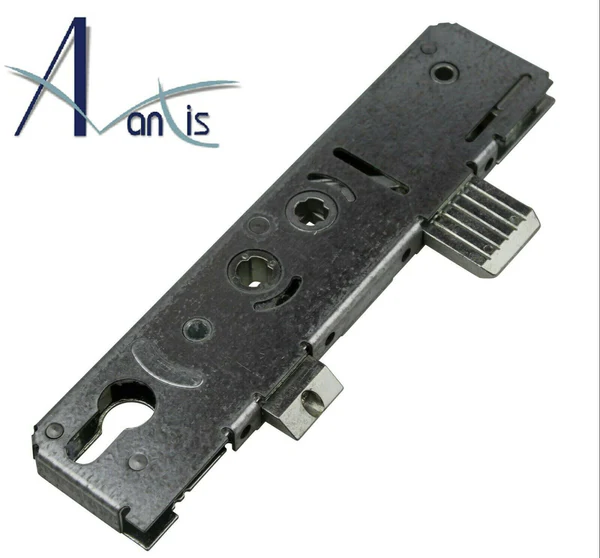

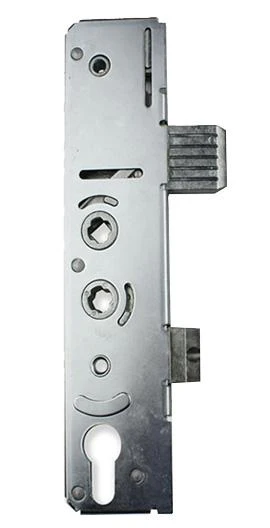

Avantis Lock Case Multi Point Door Gearbox
The Avantis Lock Case is Commonly used in UPVC & Composite Doors and Operates with a Lift Lever Function. However as it has a Duel Spindle the Night Latch Function can be used if Required. This Lock case is Available in Various Back Set Sizes.
Features :
- Latch & Deadbolt
- Back Set = 35mm & 45mm Available
- Top PZ = 92mm – (Centre of Top Spindle to Centre of Euro)
- Bottom PZ = 62mm – (Centre of Bottom Spindle to Centre of Euro)
- Case Height = 212mm
- Case Width = Back Set + 15mm
- Spindle Size = 8mm
- Euro Profile
- Lift Lever Function
This Avantis Door Lock Case is Non Handed allowing it to be reversed by undoing the Cross Headed Screw within the Latch.
This Avantis Gearbox can be used as a replacement for the Avantis 550 or 650 door lock centre case as it has the typical Avantis design where the Deadbolt is above the Latch.
Split Spindles for this Lock Case are not included , they are sold separately.
