Replacement Roto Upvc Door Lock Gearbox Multi Point Door Lock 45mm Twin Spindle

Description

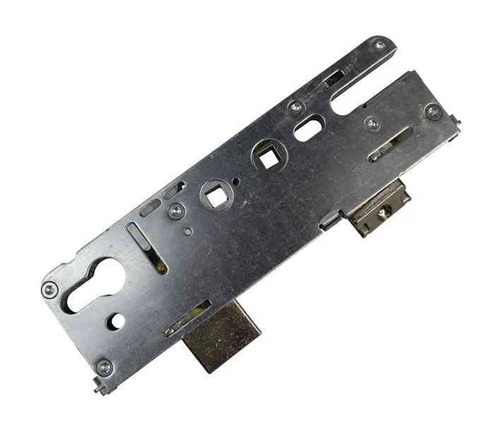

Replacement Roto Elite Lock Case Multi Point Door Gearbox

The Replacement Roto Elite Lock Case is Commonly used in Composite Doors. This 45mm Lock Case Operates with a Lift Lever Function and is available in Double Spindle.

Features :

• Latch & Dead Bolt
• Back Set = 45mm
• Top Spindle PZ = 92mm – ( Centre of Top Spindle to Centre of Euro Profile )
• Bottom Spindle PZ = 62mm ( centre of Bottom Spindle to Centre of Euro Profile )
• Case Height = 212mm
• Case Width = 60mm
• Spindle Size = 8mm
• Euro Profile
• Lift Lever Function

This Roto Elite 45mm Lock Case is Non Handed allowing it to be reversed by undoing the small Cross Headed Screw Located in the Latch.

Single Spindle is not Available.
