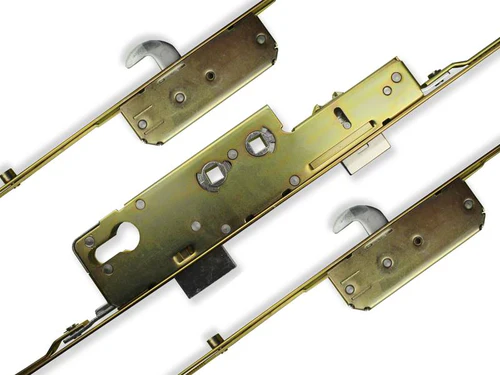

Avocet Door Lock Mechanism 2 Hook 2 Roller Gold Multi Point ( Old Style )

Description

Avocet 2 Hook 2 Roller ( Old Style ) Gold :

Avocet Door Lock Mechanism
2 Hooks

2 Roller

Latch & Dead Bolt

Back Set = 35mm

Top PZ = 92mm –   ( Centre of Top Spindle to Centre of Euro )

Bottom PZ = 62mm   –  ( Centre of Bottom Spindle to Centre of Euro )

Lock Case Height = 220mm

Lock Case Width = 50mm

Face Plate Width = 16mm

Euro Profile

Overall Length = 2200mm ( Can Be Cut Down )

Top Hook = 575mm

Top Roller = 725mm

Bottom Hook = 660mm

Bottom Roller = 820mm

This Avocet Door Lock Mechanism is Non Handed and can be reversed by undoing the screw within the Latch.

This Lock has a Lift Lever Operation and it can also be used on Double Spindle
