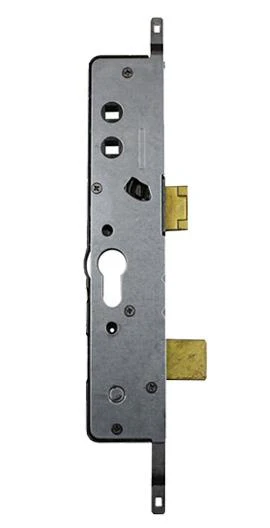

Cego Surelock Lock Case Multi Point UPVC Door Gearbox

SKU: CASE-CG-21-05013VY

Cego Surelock Lock Case Multi Point UPVC Door Gearbox

The Cego Surelock Gearbox is Commonly used in UPVC Doors. This Lock Operates with a Lift Lever Function. However as it has a Duel Spindle the Night Latch Function is accessible if Required.

£30.92

SKU CASE-CG-21-05013VY Categories , ,

Description

Cego Surelock Multi Point Door Gearbox :

The Cego Surelock Gearbox is Commonly used in UPVC Doors. This Lock Operates with a Lift Lever Function. However as it has a Duel Spindle the Night Latch Function is accessible if Required.

Features :

  • Latch & Dead Bolt
  • Back Set = 35mm
  • Top PZ = 92mm    (Centre of Top Spindle to Centre of Euro Profile )
  • Bottom PZ = 70mm    (Centre of Bottom Spindle to Centre of Euro Profile )
  • Case Height = 235mm
  • Case Width = 52mm
  • Spindle Size = 8mm
  • Euro Profile
  • Lift Lever Function

This Cego Surelock Gearbox is Non Handed allowing it to be reversed by undoing the 5 Cross Headed Screw Located on the Solid Side of the Gearbox that doesn’t have a cut out below the Latch. Once the Screws are out take the Plate off and remove the Latch Clip , Reverse the Latch and place the Clip back into position before tightening the screws back up. ( See Video below for Guidance )

Split Spindles for this Lock Case are not included , they are sold separately.

Additional information

Description

Cego Surelock Multi Point Door Gearbox :

The Cego Surelock Gearbox is Commonly used in UPVC Doors. This Lock Operates with a Lift Lever Function. However as it has a Duel Spindle the Night Latch Function is accessible if Required.

Features :

  • Latch & Dead Bolt
  • Back Set = 35mm
  • Top PZ = 92mm    (Centre of Top Spindle to Centre of Euro Profile )
  • Bottom PZ = 70mm    (Centre of Bottom Spindle to Centre of Euro Profile )
  • Case Height = 235mm
  • Case Width = 52mm
  • Spindle Size = 8mm
  • Euro Profile
  • Lift Lever Function

This Cego Surelock Gearbox is Non Handed allowing it to be reversed by undoing the 5 Cross Headed Screw Located on the Solid Side of the Gearbox that doesn’t have a cut out below the Latch. Once the Screws are out take the Plate off and remove the Latch Clip , Reverse the Latch and place the Clip back into position before tightening the screws back up. ( See Video below for Guidance )

Split Spindles for this Lock Case are not included , they are sold separately.
