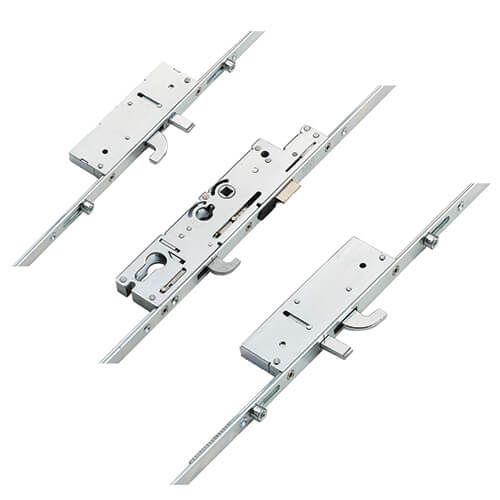

Fullex 3 Hook 2 Pin 4 Roller Multi Point Door Lock Mechanism

Description

Fullex 3 Hook 2 Pin 4 Roller Mechanism :

x1 Fullex 3H 2P 4R Mechanism in Size Chosen

2 Hooks

2 Pins

4 Rollers

Latch & Dead Bolt

Back Set = 35mm & 45mm

Single Spindle PZ = 92mm –  ( Centre of Spindle to Centre of Euro )

Double Spindle PZ =  92mm – 62mm  ( Centre of Spindle to Centre of Euro )

Case Height = 227mm

Case Width = Back Set + 15mm

Face Plate Width = 16mm

Euro Profile

Overall Length = 2200mm ( Can be Cut Down )

Distance Between Rollers = 1200mm

Distances Between Hooks = 1036mm

Distances Between Pins = 1493mm

This Lock is Non Handed and it can be fully reversed by undoing the screw within the Latch

This Lock has a Lift Lever Operation and can also be used on Double Spindle
