Safeware Door Lock Upvc Multi Point Gearbox Lock

Description

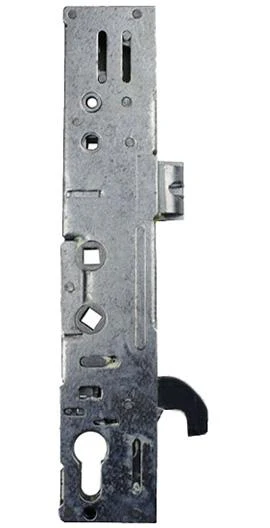

Safeware Lock Case Multi Point Door Gearbox

The Replacement Safeware Lock Case is Commonly used in UPVC Doors. This 35mm Lock Case Operates with a Lift Lever Function. However as it is a Duel Spindle the Night Latch Function can also be used if Required. Split Spindles are not included with the Lock Case.

Features :

• Latch & Hook
• Back Set = 35mm
• Top Spindle PZ = 92mm  –  ( Centre of Top Spindle to Centre of Euro Profile )
• Bottom Spindle PZ = 62mm – ( Centre of Bottom Spindle to Centre of Euro Profile )
• Case Height = 255mm
• Case Width = 50mm
• Spindle Size = 8mm
• Euro Profile
• Lift Lever Function

This Safeware Lock Case is Non Handed allowing it to be reversed by undoing the Cross Headed Screw Located in the Latch.

Split Spindles are not Included with this Lock Case they are sold separately.
