Replacement Hooply Lock Case Gearbox Aluminium Doors

Description

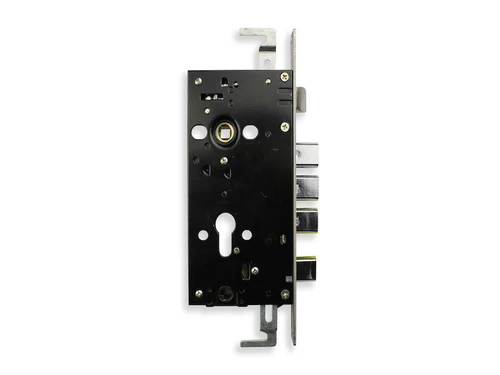

Replacement Hooply Lock Case Multi Point Door Gearbox

This Replacement Hooply Lock Case Gearbox is commonly used on Aluminium Doors like Containers and Cabins. This Lock has a Lift Lever Function.

Features :

• Latch & 4 Dead Bolts
• Back Set = 60mm
• PZ = 68mm – ( Centre of Spindle to Centre of Euro Profile )
• Face Plate Height = 240mm
• Face Plate Width = 24mm
• Spindle Size = 8mm
• Euro Profile
• Lift Lever Function

This Lock is Handed but you can reverse the Latch by:

undoing the screw on top of lock case and push silver button up, Latch pops out, twist and reinsert screw

Using a screw driver or similar insert into round hole in back of lock case behind latch. Push entire latch bolt forward until the bolt clears the faceplate and can be rotated. Spin the bolt through 180 degrees. Remove screwdriver from back of case and bolt will move back into position.
