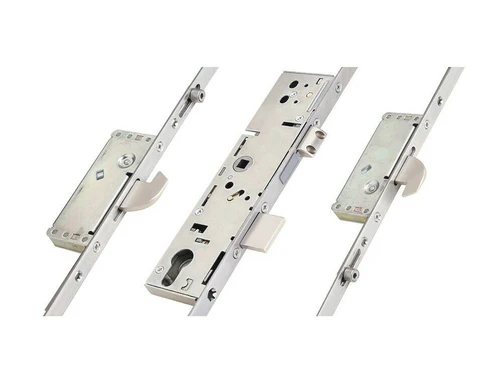

ERA Saracen 2 Hook 2 Roller Multi Point Door Lock Mechanism ( 105 )

Description

ERA Saracen 2 Hook 2 Roller Mechanism (105):

x1 Era Saracen 2H 2R Mechanism

2 Hooks

2 Rollers

Latch & Dead Bolt

Back Set = 35mm

PZ = 92mm –  ( Centre of Spindle to Centre of Euro )

Lock Height = 220mm

Lock Width = 50mm

Face Plate Width = 16mm

Euro Profile

Overall Length = 2100mm ( Can be Cut Down )

Distance Between Hooks = 1215mm

Distance Between Rollers = 1400mm

This Lock is Non Handed and can be fully reversed by undoing the screw within the Latch

This Lock has a Lift Lever and it can also be used as a Split Spindle
