GU 2 Hook Internal 2 Roller Multi Point Door Lock Mechanism

Description

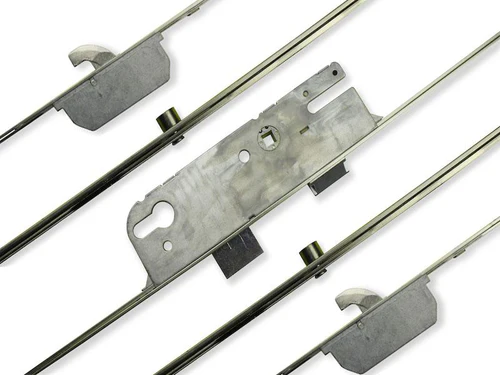

Gu 2 Hook 2 Internal Roller Mechanism :

x1 Gu 2H 2 Internal Roller Mechanism 35mm

2 Hooks

2 Internal Rollers

Latch & Dead Bolt

Back Set = 35mm

PZ = 92mm  –  ( Centre of Spindle to Centre of Euro )

Lock Case Height = 197mm

Lock Case Width = 50mm

Face Plate Width = 16mm

Euro Profile

Overall Length = 2285mm  ( Can Be Cut Down )

Datum Point to Top Hook = 730mm

Datum Point to Top Roller = 340mm

Datum Point to Bottom Hook = 770mm

Datum Point to Bottom Roller = 360mm

This Lock is Non Handed and it can be fully reversed by pushing a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. Reverse and Reinsert.

This Lock has a Lift Lever Operation
