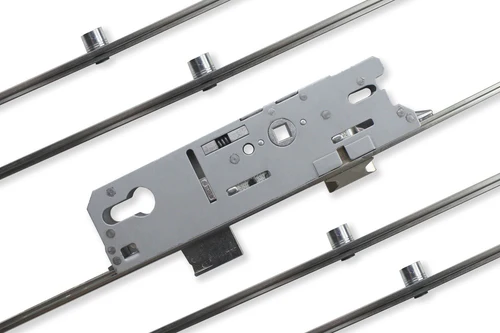

Fuhr 4 Roller Multi Point Door Lock Mechanism ( Lift Lever )

Description

Fuhr 4 Roller Lock Mechanism :

x1 Fuhr 4 Roller Mechanism in Size Chosen

4 Rollers

Latch & Dead Bolt

Back Set = 25mm , 30mm , 35mm & 45mm

PZ = 92mm –  ( Centre of Spindle to Centre of Euro )

Lock Case Height = 195mm

Lock Case Width = Back Set +18mm

Face Plate Width = 16mm

Overall Length = 2170mm ( Can be cut down )

Distance Between External Rollers =1510mm

Distance Between Internal Rollers = 700mm

Euro Profile

This Lock is Non Handed and it can be fully reversed by undoing the Allen Key screw that is Located on the side of the Case next to the Latch

This Lock has a Lift Lever Operation
